From the Archives: Square Four evolution

While little cannot already have been written about the Ariel Square Four, it takes only a brief look through the Mortons Archive to reignite the intrigue this distinguished British design has always generated, writes Pete Kelly.

To say that the public unveiling of the overhead-camshaft 500cc Ariel Square Four in the autumn of 1930 caused a sensation would be a considerable understatement.

At a time still associated with soup kitchen queues, the Ariel’s appearance at the 1930 Olympia Motorcycle Show even out-posed the introduction of the Matchless Silver Hawk, and four giants of the British motorcycle industry – Edward Turner, Jack Sangster, Val Page and Bert Hopwood – each played a part in the story.

Article continues below...

Enjoy more Old Bike Mart reading in the monthly newspaper.
Click here to subscribe & save.

The brainchild of Edward Turner in the late 1920s, the Square Four’s engine had two crankshafts rotating in opposite directions through geared central flywheels.

Valves were operated by a single chain-driven camshaft across the top of the head, the valves being opened by rocker arms riding on the cam.

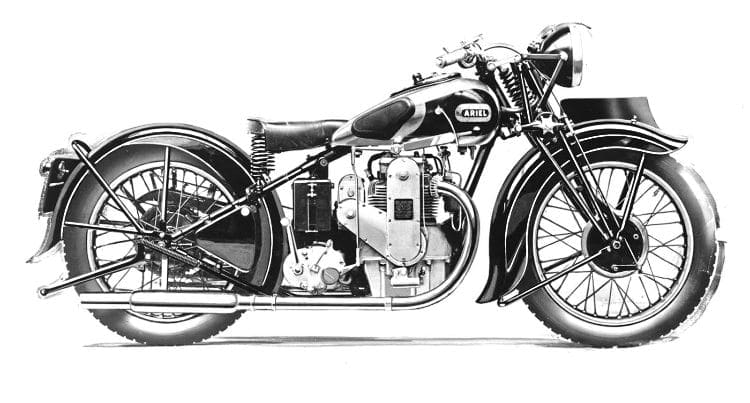

It wasn’t long before the original Model 4F Square Four’s engine’s capacity was enlarged to 600cc, and this photo of the new model was received by one of the motorcycling journals on November 16, 1933.

With the gears meshed correctly, the crankpins of one shaft would be at top and bottom dead centre while those of the other would be at bottom and top dead centre. With two diagonally opposite pistons at TDC and the others at BDC, this was the perfect recipe for smoothness.

Article continues below...

After touting his design around various manufacturers including BSA, Turner was finally engaged by Ariel’s Jack Sangster and worked with Bert Hopwood (then a junior draughtsman) under the legendary Val Page.

The very first Ariel Square Four road test appeared in the April 9, 1931 issue of The Motor Cycle, and not surprisingly the newcomer was greeted with great enthusiasm.

In 1931 Ariel won the Maudes Trophy with an ingenious ‘Sevens’ test devised by the firm’s sales and marketing manager Victor Mole. This involved seven different Ariel models, and in one of the tests, seven schoolboys were each invited to kick-start a Square Four seven times. It started first kick on 48 out of the 49 attempts, and then went on to complete 700 miles in 700 minutes.

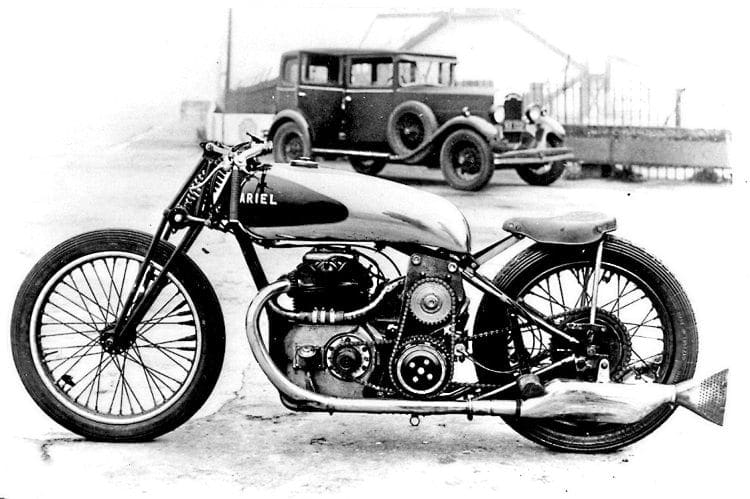

Look – no front brake! In 1933, in the hands of Ben Bickell, this supercharged 500cc Ariel Square Four lapped Brooklands at 110mph and narrowly missed becoming the first British machine to achieve 100 miles in an hour.

“Becoming critical through experience, it is not often that the staff of The Motor Cycle can apply superlatives to almost every feature of a particular motor cycle,” wrote the lucky test rider.

Article continues below...

“The machine may, for instance, hold the road well, it may have magnificent acceleration or a high maximum speed, it may be an easy starter, it may be extremely pleasant to handle, or it may perhaps be quiet and smooth in its running.

“But when a machine combines every one of these features, it is time to say so in no uncertain voice. Such a machine was the ‘Square Four’ Ariel that has been tested – one of the first actual production models – and no apologies need be made for showing enthusiasm.”

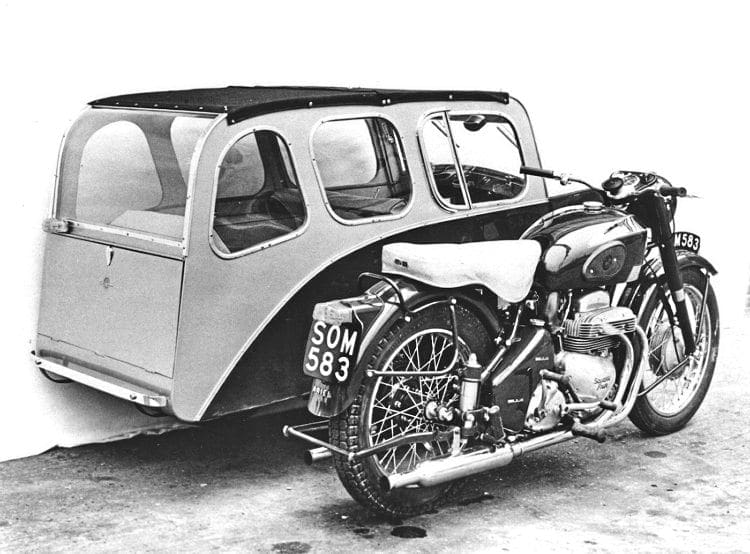

The Square Four quickly developed a reputation as a smooth and lusty sidecar lugger, and this 1000cc Mk.2 was pictured with a double-adult ‘chair’ in 1956 – but how did they keep those dual seats clean?

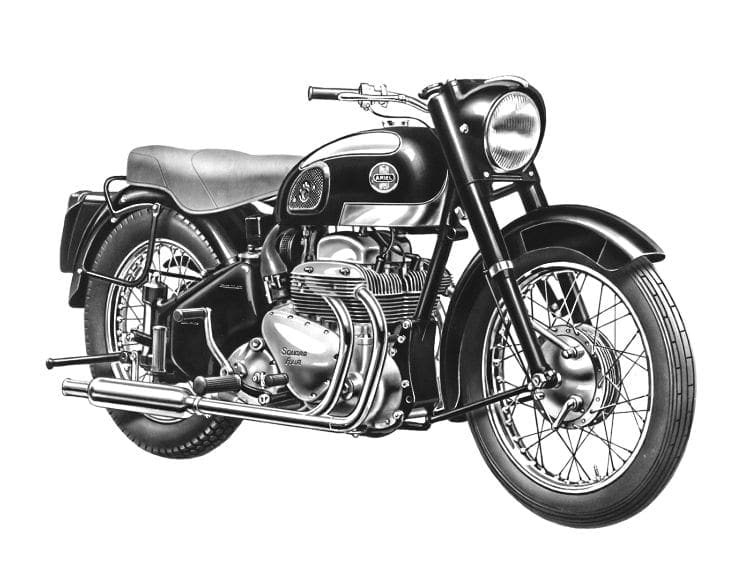

In its final four-pipe form, the beautifully-sculpted lines of the Square Four engine had a belated art deco appearance.

Test highlights of the £75 10s (fully equipped but without horn!) model were its ability to start, once warmed up, with a gentle depression of the kick-starter by hand; its near-silent tick-over; its ability to pull away smoothly from a standstill in second gear, or, having been throttled down to six or seven mph in top (third) to accelerate from there to an indicated 75mph, and its fuel consumption of 64mpg at a steady 50mph.

Article continues below...

In a 28-year production run lasting until 1959, the Square Four went through several metamorphoses.

The original 500cc 4F was enlarged to 600cc in 1932, and the pushrod-operated 1000cc 4G was launched in 1936.

The first big change in the Square Four’s design occurred in 1935 when the pushrod-operated 1000cc 4G was revealed. In this historic photograph, published on November 21, 1935, designer Edward Turner (left) is seen with rider Freddie Clarke, who attempted ‘10 to 100mph in top’ and managed 99.22mph in the Brooklands wind and rain, and (right) E Smith of Ariel’s experimental and test department.
A test rider feels the wind in his hair in this 1953 Motor Cycling photo as he rides a 1000cc Square Four through scenic countryside.

In 1949, the 1000cc Mk.1 appeared with an all-alloy cylinder block and head replacing the 4G’s heavy cast iron engine, with resultant improvements in handling and acceleration; and finally, in 1953, the 1000cc four-pipe Mk.2 was the final Squariel model to be built, lasting until 1959.

Next month we’ll take a deeper look at the history of the Ariel Square Four through the successive road tests of all models, and also tell the story of the Healey 1000/4 (1971-7) which, with its much improved Square Four engine, was actually cheaper than a Honda Gold Wing, although fewer than 30 were ever built.
